In this tutorial, we introduce the basic usage of the XRViewer. For convenience, we provide some example data for testing, which can be downloaded from here.

Camera

XRViewer supports visualizing the camera placement. The camera is generated by the XRPrimer and its parameters are packed into a .json file. To spawn cameras, click LOAD CAMERA button on the CAMERA panel and upload the camera files to the viewer:

alt camera_visualization

To append new cameras to the scene, click ADD CAMERA button. You can also change the camera properties on the CAMERA panel, e.g., set camera mesh or label visibility, dispose cameras.

Mesh

For mesh visualization, we employ two modes to visualize meshes in different formats, namely the Local Mode and the Stream Mode:

Local Mode: supports meshes that are officially supported by Babylon.js.
Stream Mode: supports meshes that are represented as customized data structures or not officially supported by Babylon.js.

The following table illustrates the supported file formats:

	Local Mode	Stream Mode
Static Mesh	obj, gltf(glb), stl	-
Animated Mesh	gltf(glb)	fbx, alembic, npz(SMPL data)

Local Mode

For static meshes, select Local mode on the mesh panel. Then, click LOAD STATIC MESH and upload the corresponding file to the viewer:

alt local_static_mesh

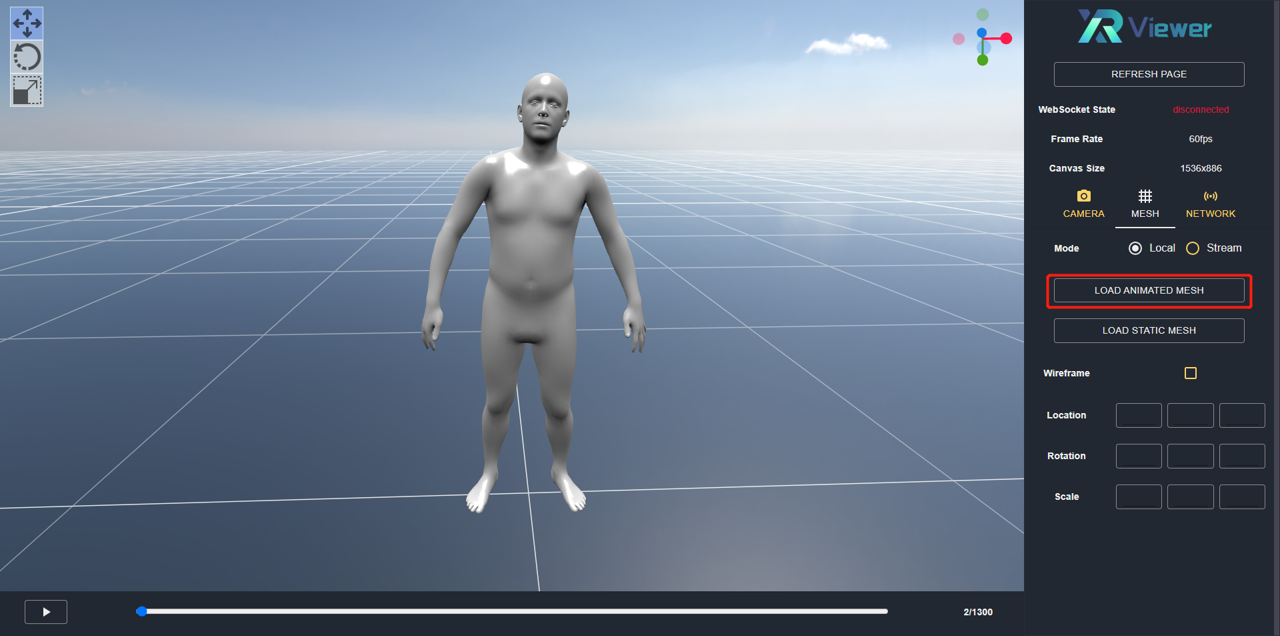

For animations, click LOAD ANIMATED MESH and upload the file to the viewer:

alt local_animation

The animation panel is located at the bottom of the viewer and is used to control the playing state.

Stream Mode

Many animation file types are not officially supported by Babylon.js, including fbx, alembic, etc. Worse still, some animations are not stored as common data exchange format, e.g. the SMPL(X) animation is encoded by a set of parametric values that controls the body shape/pose deformations, which cannot be directly parsed and rendered by the web viewer.

Taking the SMPL(X) as example, the traditional workflow involves manually infer per-frame joint transforms via the SMPL(X) body model, which are further used to compute mesh deformations. Then, the sequence is either baked as a geometry cache(e.g., alembic, obj sequence) or saved as a skeletal mesh(e.g., fbx, gltf), which can be imported into 3D graphics software(e.g., Blender, Maya) for rendering.

To simplify such process, we designed and developed the Stream mode, which facilitates visualizing animations not supported by Babylon.js or in customized data structures. We hope it less painful for the developers and researchers to visualize their data.

To use the Stream mode, the stream service needs to be configured. Please refer to the streamed animation for more details.
